Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

Product Categories
FASTPCBA Co., Ltd.
Contact Now

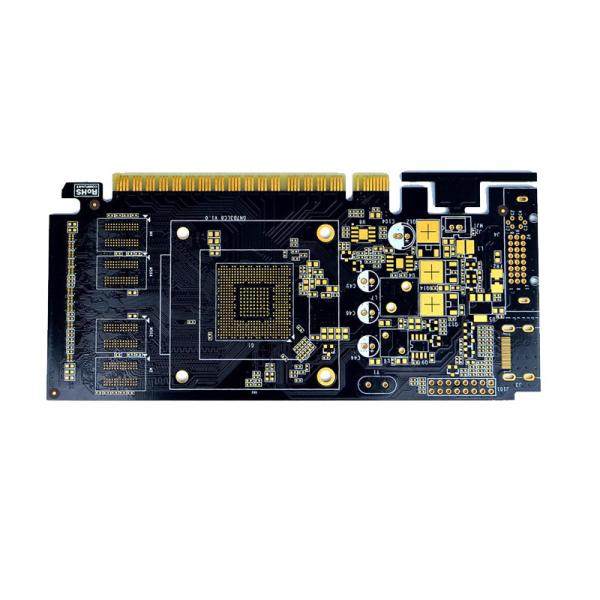

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

  • 1
  • 2
  • 3

Brand Name : FASTPCBA

Model Number : PCB Assembly

Certification : IATF16949, ISO13485, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 1-20

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150000 Pieces per Month

Delivery Time : 5

Packaging Details : PCB: Vacuum Packing/ PCBA: ESD Packing

Laminate materials : FR4, High TG FR4, High Frequency, Alum, FPC

Number of layers : 1-48

Board Thickness : 0.1-4mm±10%

Cu weight : 0.5-4 0z

Min line/space : 0.075/0.075mm

Color : Green,white,black,red,blue…

Contact Now

Pcb Population Manufacturing Service Board Pcb Fabrication And Assembly

Product Description:

Article Description Capability
Sercive PCB and SMT assembly with one-stop service
Material Laminate materials FR4, high TG FR4, high frequency, alum, FPC
Board cutting Number of layers 1-48

Min.thickness for inner layers

(Cu thickness are excluded)

 0.003”(0.07mm)
Board thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist 7/1000
Copper weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)

Solder mask

 Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
E-test Function Test 100% Functional test
PCBA Testing X-ray,AOI Test,Functional test
Pcb assembly one-stop service electronic manufacxturer service
Component sourcing Yes
Certificate IATF16949, ISO13485, ISO9001
Delivery time: PCB 3-12days
PCBA 8-20days
Tolerance of pcb ±5%
Max size of finish board 450*450mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline Square,circle,irregular(with jigs)
package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

FASTPCBA has focused on high quality pcb assembly over 20 years, and it’s arm to better serve for industry pcba,automotive pcba, medical pcba,military pcba, smart home pcba, communication pcba, militay pcba, aerospace pcba etc.

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

FASTPCBA is the most cost-effective manufacturer with procurement team average pcba industry experience over 15 years, providing the most competitive pcba price and high quality pcb components for customers of medical, automotive, industrial control etc.

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

With ISO9001,13485, 14000 and IATF16949 certificates, complete ESD protection & dust free smt workshop, experienced engineer team, ERP pcb process control online, 9 steps pcb testing, ensuring high quality pcb & pcba service.

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly

Due to quality oriented, FASTPCBA has continuous orders in such fierce competition pcba market environment, welcome to consult or send a inquiry to get best pcb quotation.

Ems PCBA Board Pcb Fabrication Companies Aoi Contract PCB Assembly
